LM5113 - Half Bridge GaN Driver

Product Overview

Texas Instruments

Datasheet Details

Part number	LM5113
Manufacturer	Texas Instruments
File Size	2.19 MB
Description	Half Bridge GaN Driver
Datasheet	LM5113 Datasheet

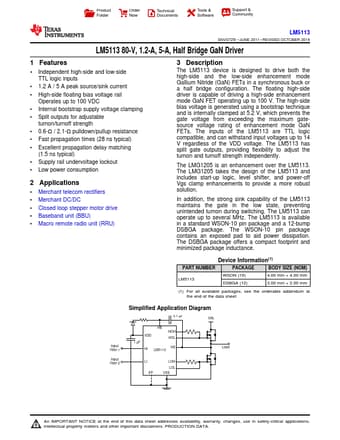

Additional preview pages of the LM5113 datasheet.

Product details

Description

The LM5113 device is designed to drive both the high-side and the low-side enhancement mode Gallium Nitride (GaN) FETs in a synchronous buck or a half bridge configuration.

Features

1 Independent high-side and low-side TTL logic inputs.
1.2 A / 5 A peak source/sink current.
High-side floating bias voltage rail Operates up to 100 VDC.
Internal bootstrap supply voltage clamping.
Split outputs for adjustable turnon/turnoff strength.
0.6-Ω / 2.1-Ω pulldown/pullup resistance.
Fast propagation times (28 ns typical).
Excellent propagation delay matching (1.5 ns typical).
Supply rail undervoltage locko.
