LM5116-HT

WIDE RANGE SYNCHRONOUS BUCK CONTROLLER

LM5116-HT Features

* 1

* 2 Emulated Peak Current Mode

* Wide Operating Range Up to 80 V

* Low IQ Shutdown (< 10 µA)

* Drives Standard or Logic Level MOSFETs

* Robust 3.5-A Peak Gate Drive

* Free-Run or Synchronous Operation to 1 MHz

* Optional Diode Emulation Mode

LM5116-HT General Description

The LM5116 is a synchronous buck controller intended for step-down regulator applications from a high voltage or widely varying input supply. The control method is based upon current mode control utilizing an emulated current ramp. Current mode control provides inherent line feed-forward, cycle by c.

LM5116-HT Datasheet (637.35 KB)

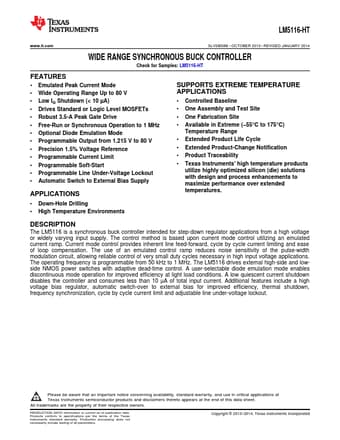

Preview of LM5116-HT PDF
