LMH6733 Datasheet - National Semiconductor

Triple Operational Amplifier

LMH6733 Features

* Supply range 3 to 12V single supply

* Supply range ±1.5V to ±6V split supply

* 1.0 GHz

* 3 dB small signal bandwidth

* (AV = +1, VS = ±5V) 650 MHz

* 3 dB small signal bandwidth (AV = +2, VS = 5V) Low supply current (5.5 mA per op amp, VS

LMH6733 General Description

The LMH6733 is a triple, wideband, operational amplifier designed specifically for use where high speed and low power are required. Input voltage range and output voltage swing are optimized for operation on supplies as low as 3V and up to ±6V. Benefiting from National’s current feedback architectur.

LMH6733 Datasheet (512.80 KB)

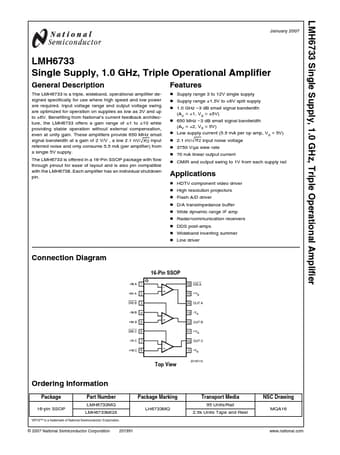

LMH6733 Datasheet Preview — Preview of LMH6733 PDF

Datasheet Details

Part number:

LMH6733

Manufacturer:

National Semiconductor

File Size:

512.80 KB

Description:

Triple operational amplifier.
www.DataSheet4U.com LMH6733 Single Supply, 1.0 GHz, Triple Operational Amplifier January 2007 LMH6733 Single Supply, 1.0 GHz, Triple Operational Am.
