MM551 MOS analog switches

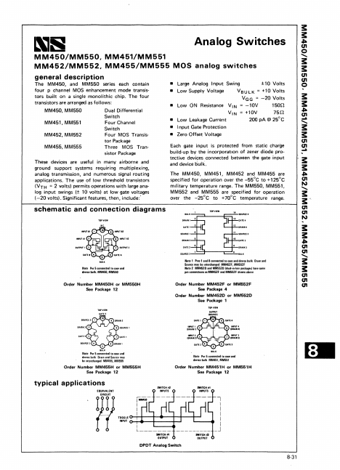

The MM450, and MM550 series each contain four p channel MOS enhancement mode transistors built on a single monolithic chip. The four transistors are arranged as follows: MM450, MM550 MM451, MM551 MM452, MM552 MM455, MM555 Dual Differential Switch Four Channel Switch Four MOS Transistor Package Th.

MM551 Features

* then, include:'

* Large Analog Input Swing ±10 Volts

* Low Supply Voltage V BU LK = +10 Volts VGG = ~20 Volts

* Low ON Resistance VIN = -10V 150>2 +10V 75>2

* Low Leakage Current 200 pA@25°C

* Input Gate Prote
