MM554

four-channel commutator

National Semiconductor

MM554 Features

* High Analog Voltage Handling

* High Commutating Rate

* Low Leakage Current (TA = 25° C) (TA = 85°C) ±10V 500 kHz 200pA 50nA

* All Channel Blanking input provided

* Reset capability provided

* Low ON Resistance 200n In addition, the MM454/MM554

MM554 General Description

The fIiIM454/MM554 IS a four-channel analog commutator capable of switching four analog input channels sequentially onto an output line. The device is constructed on a single silicon chip using MaS P Channel enhancement transistors; it contains all the digital cirCUitry necessary to sequentially tu.

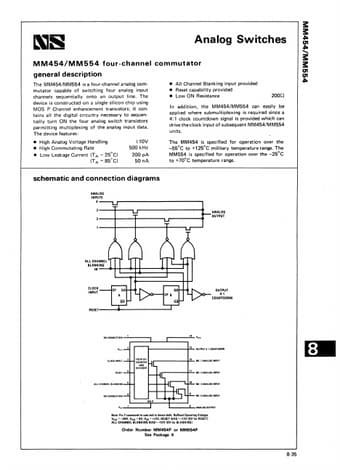

MM554 Datasheet (151.00 KB)

MM554 Datasheet Preview — Preview of MM554 PDF

Datasheet Details

Part number:

MM554

Manufacturer:

National Semiconductor

File Size:

151.00 KB

Description:

Four-channel commutator.
