MM552, MM550 Datasheet - National Semiconductor

MM552 MOS analog switches

The MM450, and MM550 series each contain four p channel MOS enhancement mode transistors built on a single monolithic chip. The four transistors are arranged as follows: MM450, MM550 MM451, MM551 MM452, MM552 MM455, MM555 Dual Differential Switch Four Channel Switch Four MOS Transistor Package Th.

MM552 Features

* then, include:'

* Large Analog Input Swing ±10 Volts

* Low Supply Voltage V BU LK = +10 Volts VGG = ~20 Volts

* Low ON Resistance VIN = -10V 150>2 +10V 75>2

* Low Leakage Current 200 pA@25°C

* Input Gate Prote

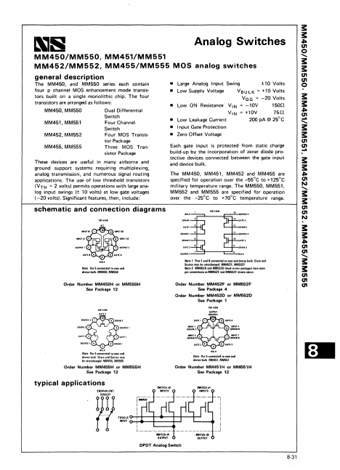

MM550-NationalSemiconductor.pdf

MM552 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM552, MM550. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM552, MM550

Manufacturer:

National Semiconductor

File Size:

269.90 KB

Description:

Mos analog switches.

Note:

This datasheet PDF includes multiple part numbers: MM552, MM550.
Please refer to the document for exact specifications by model.
