M29W128GH - 128 Mbit 3V Supply Flash Memory
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
8 Signal descriptions .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 2.10 2.11 2.12 2.13 2.14 Address inputs (A0-A22) .
.
.
.
.

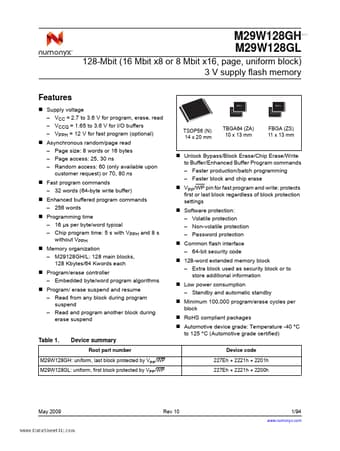

M29W128GH Features
* Supply voltage
* VCC = 2.7 to 3.6 V for program, erase, read
* VCCQ = 1.65 to 3.6 V for I/O buffers
* VPPH = 12 V for fast program (optional)
* Asynchronous random/page read
* Page size: 8 words or 16 bytes
* Page access: 25, 30 ns
