MSC1162A Datasheet - OKI electronic

40-Bit Vacuum Fluorescent Display Tube Grid/Anode Driver

MSC1162A Features

* Logic Supply Voltage (VCC) : 5V

* Driver Supply Voltage (VHV): 65V

* Driver Output Current IOHVH1 (Only one driver output : "H") :

* 40mA IOHVH2 (All the driver outputs : "H") :

* 2mA IOHVL:1mA

* Directly connected to VFD tube without pull-down resisto

MSC1162A General Description

The MSC1162A is a monolithic IC designed for directly driving the grid and anode of the vacuum fluorescent display tube. The device contains a 40-bit bidirectional shift register, a 40-bit latch circuit, and 40-output circuit on a single chip. Display data is serially stored in the shift register at.

MSC1162A Datasheet (110.42 KB)

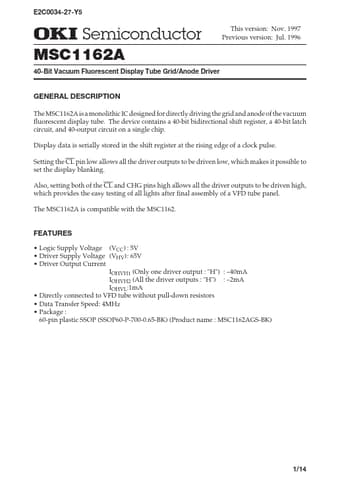

MSC1162A Datasheet Preview — Preview of MSC1162A PDF

Datasheet Details

Part number:

MSC1162A

Manufacturer:

OKI electronic

File Size:

110.42 KB

Description:

40-bit vacuum fluorescent display tube grid/anode driver.
E2C0034-27-Y5 ¡ Semiconductor MSC1162A ¡ Semiconductor 40-Bit Vacuum Fluorescent Display Tube Grid/Anode Driver This version: Nov. 1997 MSC1162A Pre.
