MSC1157

Speaker Drive Amplifier

MSC1157 Features

* Low voltage operation

* Low current dissipation Operating current

* Standby function

* High output current

* Differential outputs : 2.0 to 6.0 V (Single power supply) : : : : 1.6mA without load (typ.) Current dissipation less than 1 mA in standby 350mA peak

MSC1157 General Description

The MSC1157, designed specifically to operate at a low voltage with low current consumption, is a power amplifier developed for driving a speaker for a voice IC. The voltage gains can be adjusted over a range of up to ten. The differential output can directly drive a speaker without any output coupl.

MSC1157 Datasheet (143.41 KB)

Preview of MSC1157 PDF

Datasheet Details

Part number:

MSC1157

Manufacturer:

OKI electronic

File Size:

143.41 KB

Description:

Speaker drive amplifier.

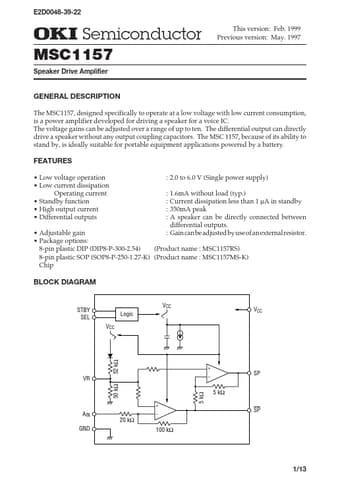

E2D0048-39-22 ¡ Semiconductor MSC1157 ¡ Semiconductor Speaker Drive Amplifier This version: Feb. 1999 MSC1157 Previous version: May. 1997 GENERAL D.
