MSC1163 Datasheet - OKI electronic

MSC1163 - 40-Bit Anode Driver

The MSC1163 is a monolithic IC using the Bi-CMOS process for hybridizing CMOS and bipolar transistors on the same chip. The logic portion such as the input stage, shift register and latch is fabricated by CMOS and the output driver requiring a high withstand voltage is fabricated by bipolar transist.

MSC1163 Features

* The MSC1163 is designed as a VFD anode driver with emitter-follower output providing 40-bit active pull-down and built-in 40-bit bidirectional shift register and latch.

* Logic Supply Voltage (VCC) : 5V

* Driver Supply Voltage (VHV) : 65V

* Driver Output Current IOHVH :

MSC1163_OKIelectronic.pdf

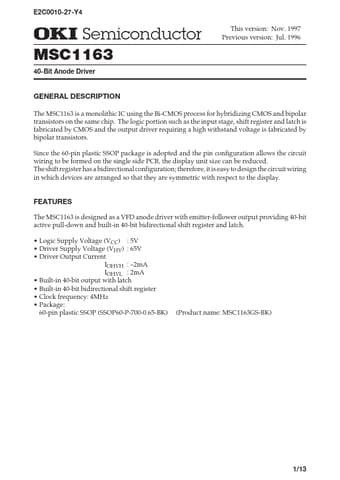

Preview of MSC1163 PDF
MSC1163 Datasheet Preview Page 2 MSC1163 Datasheet Preview Page 3

Datasheet Details

Part number:

MSC1163

Manufacturer:

OKI electronic

File Size:

109.16 KB

Description:

40-bit anode driver.
