MSC1164

20-Bit Grid/Anode Driver

MSC1164 Features

* The MSC1164 is designed as a VFD grid/anode driver with emitter-follower force output with 20-bit active pull-down and built-in 20-bit shift register and latch.

* Logic Supply Voltage (VCC) : 5V : 65V

* Driver Supply Voltage (VHV)

* Driver Output Current IOHVH1 :

* 40mA

MSC1164 General Description

The MSC1164 is a monolithic IC using the Bi-CMOS process technology for hybridizing CMOS and bipolar transistors on the same chip. The logic portion such as the input stage, shift register and latch is fabricated by CMOS and the output driver requiring a high withstand voltage is fabricated by bipol.

MSC1164 Datasheet (120.85 KB)

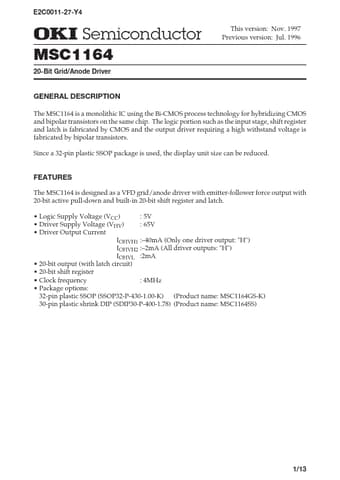

Preview of MSC1164 PDF

Datasheet Details

Part number:

MSC1164

Manufacturer:

OKI electronic

File Size:

120.85 KB

Description:

20-bit grid/anode driver.
E2C0011-27-Y4 ¡ Semiconductor MSC1164 ¡ Semiconductor 20-Bit Grid/Anode Driver This version: Nov. 1997 MSC1164 Previous version: Jul. 1996 GENERAL .
