M54V24616 MSM54V24616 by OKI - Datasheet Preview — Datasheet preview – M54V24616

Datasheet Details

Part number	M54V24616
Manufacturer	OKI
File Size	460.11 KB
Description	MSM54V24616
Datasheet	M54V24616 Datasheet

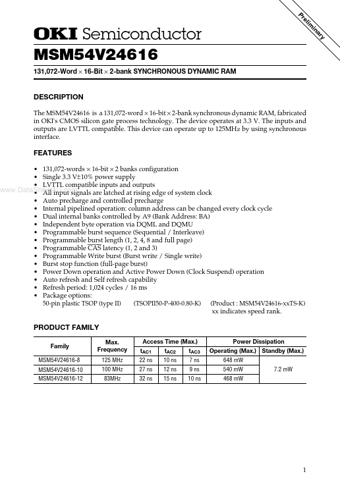

Additional preview pages of the M54V24616 datasheet.

Product details

Description

The MSM54V24616 is a 131,072-word 16-bit 2-bank synchronous dynamic RAM, fabricated in OKI's CMOS silicon gate process technology.

Features

131,072-words.
16-bit.
2 banks configuration.
Single 3.3 V± 10% power supply.
LVTTL compatible inputs and outputs www. DataSheet4U. com.
All input signals are latched at rising edge of system clock.
Auto precharge and controlled precharge.
Internal pipelined operation: column address can be changed every clock cycle.
Dual internal banks controlled by A9 (Bank Address: BA).
Independent byte operation via DQML and DQM.
