2SA1709 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SA1709
Manufacturer	ON Semiconductor
File Size	552.34 KB
Description	Bipolar Transistor
Datasheet	2SA1709 Datasheet

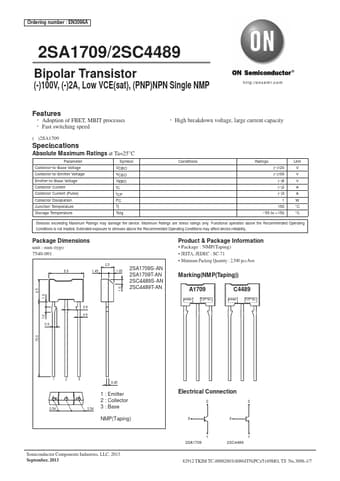

Additional preview pages of the 2SA1709 datasheet.

Adoption of FBET, MBIT processes.
Fast switching speed.
High breakdown voltage, large current capacity ( )2SA1709 Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature VCBO VCEO VEBO IC ICP PC Tj Storage Temperature Tstg Conditions Ratings (--)120 (--)100 (--)6 (--)2 (--)3 1 150 --.
