2SB1203 - Bipolar Transistor

Datasheet Summary

Features

  • High current and high fT Low collector-to-emitter saturation voltage.
  • Fast switching speed Excellent linearity of hFE Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller Specifications ( ): 2SB1203 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)6.

📥 Download Datasheet

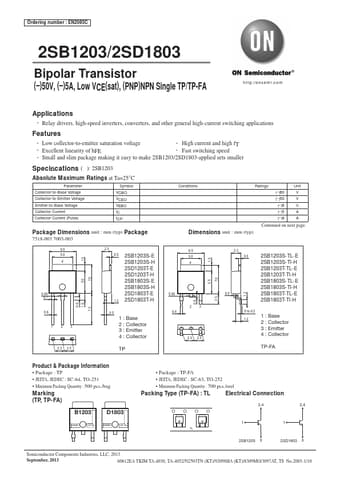

Datasheet preview – 2SB1203

Datasheet Details

Part number 2SB1203
Manufacturer ON Semiconductor
File Size 434.74 KB
Description Bipolar Transistor
Datasheet download datasheet 2SB1203 Datasheet
Additional preview pages of the 2SB1203 datasheet.

📁 Similar Datasheet

  • 2SB1203 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB1203 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1203 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB1203 - Transistors (Kexin)
  • 2SB1201 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB1201 - Transistors (Kexin)
  • 2SB1201 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB1202 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB1202 - PNP Epitaxial Planar Silicon Transistors (GME)
  • 2SB1202 - Silicon PNP Power Transistor (Inchange Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Ordering number : EN2085C 2SB1203/2SD1803 Bipolar Transistor (–)50V, (–)5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA Applications • http://onsemi.com Relay drivers, high-speed inverters, converters, and other general high-current switching applications Features • • • • High current and high fT Low collector-to-emitter saturation voltage • Fast switching speed Excellent linearity of hFE Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller Specifications ( ): 2SB1203 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)60 (--)50 (--)6 (-)5 (-)8 Unit V V V A A Continued on next page.
