2SC5994 NPN Single Bipolar Transistor

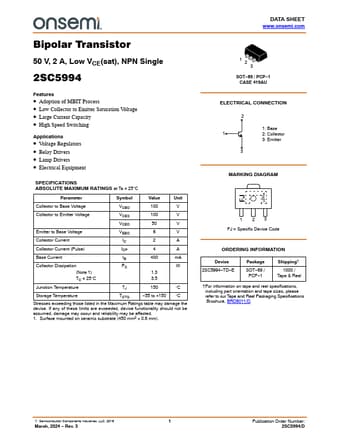

📥 Download Datasheet Datasheet Preview Page 1

Description

Bipolar Transistor 50 V, 2 A, Low VCE(sat), NPN Single 2SC5994 .
SOT. 89 / PCP. 1 Electronic versions are uncontrolled except when accessed directly from the Document Repository.

📥 Download Datasheet

Preview of 2SC5994 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Adoption of MBIT Process
* Low Collector to Emitter Saturation Voltage
* Large Current Capacity

Applications

* Voltage Regulators
* Relay Drivers
* Lamp Drivers
* Electrical Equipment SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS at Ta = 25°C Parameter Symbol Value Unit Collector to Base Voltage VCBO 100 V Collector to Emitter Voltage VCES 100 V VCEO 50 V Emitter
