BSS138 - N-Channel MOSFET

Product Overview

ON Semiconductor

Datasheet Details

Part number	BSS138
Manufacturer	ON Semiconductor
File Size	242.05 KB
Description	N-Channel MOSFET
Datasheet	BSS138 Datasheet

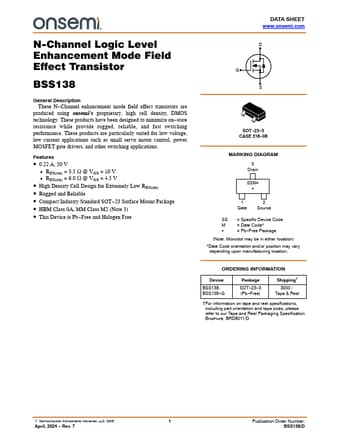

Additional preview pages of the BSS138 datasheet.

Product details

Description

These N Channel enhancement mode field effect transistors are produced using onsemi’s proprietary, high cell density, DMOS technology.These products have been designed to minimize on state resistance while provide rugged, reliable, and fast switching performance.

Features

0.22 A, 50 V.
RDS(on) = 3.5 W @ VGS = 10 V.
RDS(on) = 6.0 W @ VGS = 4.5 V.
High Density Cell Design for Extremely Low RDS(on).
Rugged and Reliable.
Compact Industry Standard SOT.
23 Surface Mount Package.
HBM Class 0A, MM Class M2 (Note 3).
This Device is Pb.
Free and Halogen Free DATA SHEET www. onsemi. com D G S SOT.
23.
3 CASE 318.
08.
