CS8190 - Precision Air-Core Tach/Speedo Driver

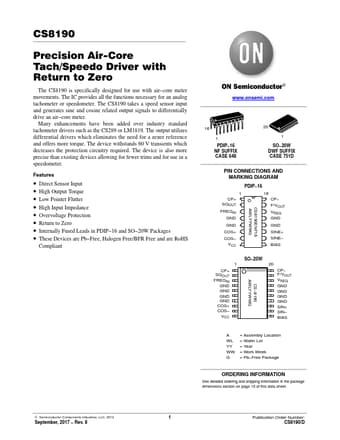

CS8190 Precision Air-Core Tach/Speedo Driver with Return to Zero The CS8190 is specifically designed for use with air core meter movements. The IC provides all the functions necessary for an analog tachometer or speedometer. The CS8190 takes a speed sensor input and generates sine and cosine related output signals to differentially drive an air core meter. Many enhancements have been added over industry standard tachometer drivers such as the CS289 or LM1819. The output utilizes.

CS8190 Features

* Direct Sensor Input

* High Output Torque

* Low Pointer Flutter

* High Input Impedance

* Overvoltage Protection

* Return to Zero

* Internally Fused Leads in PDIP

* 16 and SO

* 20W Packages

* These Devices are Pb

* Fre
