ECH8663R 30V 8A Dual N-Channel Power MOSFET

ON Semiconductor

Description

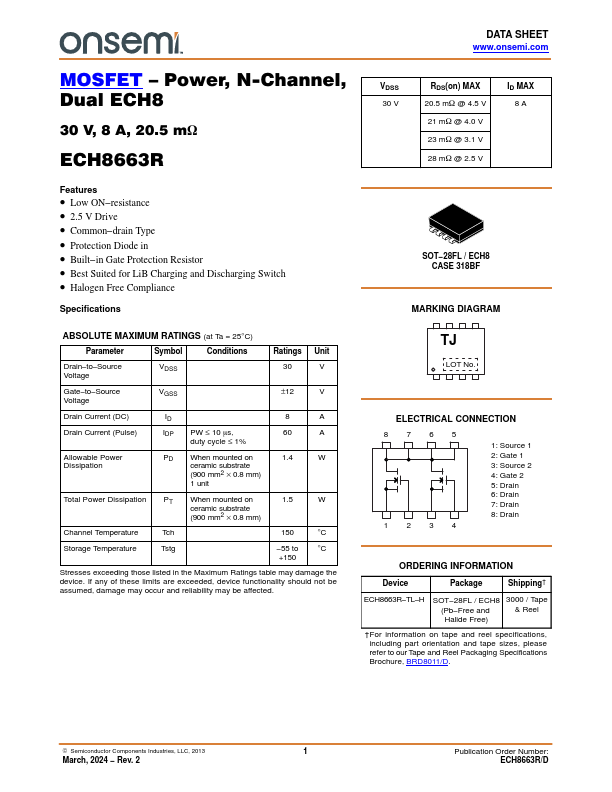

DATA SHEET www.onsemi.com MOSFET * Power, N-Channel, Dual ECH8 30 V, 8 A, 20.5 mW ECH8663R VDSS 30 V RDS(on) MAX 20.5 mW @ 4.5 V 21 mW @ 4..

📥 Download Datasheet

ECH8663R Datasheet Preview — Preview of ECH8663R PDF

Datasheet Specifications

Part number: ECH8663R
Manufacturer: ON Semiconductor ↗
File Size: 109.52 KB
Datasheet: ECH8663R-ONSemiconductor.pdf
Description: 30V 8A Dual N-Channel Power MOSFET

Features

* Low ON
* resistance
* 2.5 V Drive
* Common
* drain Type
* Protection Diode in
* Built
* in Gate Protection Resistor
* Best Suited for LiB Charging and Discharging Switch
* Halogen Free Compliance Specifications ABSOLUTE MAX
