FDMS007N08LC, N-Channel MOSFET

FDMS007N08LC N-Channel Shielded Gate POWERTRENCH) MOSFET 80 V, 84 A, 6.7 mW .
This N. Channel MV MOSFET is produced using ON Semiconductor’s advanced POWERTRENCH process that incorporates Shielded Gate technology.

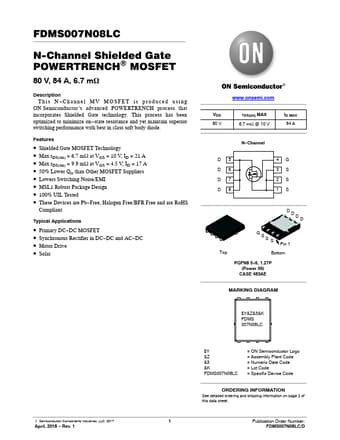

datasheet Preview Page 1 from Datasheet4u.com

FDMS007N08LC-ONSemiconductor.pdf

FDMS007N08LC Datasheet Preview — Preview of FDMS007N08LC PDF

Datasheet Details

Part number:

FDMS007N08LC

Manufacturer:

ON Semiconductor ↗

File Size:

511.55 KB

Description:

N-Channel MOSFET

Features

* Shielded Gate MOSFET Technology
* Max rDS(on) = 6.7 mW at VGS = 10 V, ID = 21 A
* Max rDS(on) = 9.9 mW at VGS = 4.5 V, ID = 17 A
* 50% Lower Qrr than Other MOSFET Suppliers
* Lowers Switching Noise/EMI
* MSL1 Robust Package Design
* 100% UIL

Applications

* Primary DC
* DC MOSFET
* Synchronous Rectifier in DC
* DC and AC
* DC
* Motor Drive
* Solar www. onsemi. com VDS 80 V rDS(on) MAX 6.7 mW @ 10 V ID MAX 84 A N
* Channel D5 D6 D7 D8 4G 3S 2S 1S DDD D GSS S Pin 1 Top Bottom PQFN8 5y6,
