KA431L

Programmable Shunt Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi KA431LZTA IC VREF SHUNT ADJ 0.5% TO92-3 DigiKey 3943 1000 units
$0.11

KA431L Datasheet (304.12 KB)

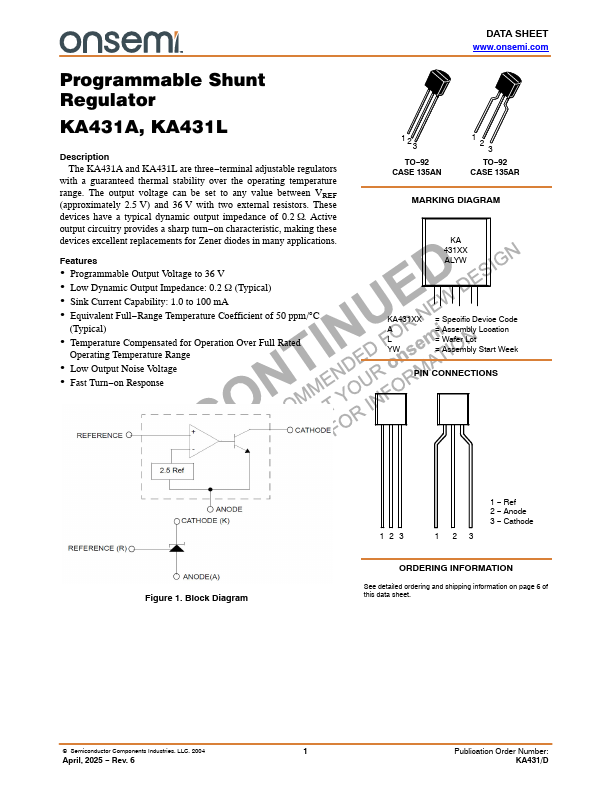

Preview of KA431L PDF

Datasheet Details

Part number:

KA431L

Manufacturer:

ON Semiconductor ↗

File Size:

304.12 KB

Description:

Programmable shunt regulator.

KA431L Features

* Programmable Output Voltage to 36 V

* Low Dynamic Output Impedance: 0.2 W (Typical)

* Sink Current Capability: 1.0 to 100 mA

* Equivalent Full

* Range Temperature Coefficient of 50 ppm/°C (Typical)

* Temperature Compensated for Operation Over Full Rate

KA431L General Description

The KA431A and KA431L are three

*terminal adjustable regulators with a guaranteed thermal stability over the operating temperature range. The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dynamic ou.

📁 Related Datasheet

KA431 - Programmable Shunt Regulator (Fairchild)
KA431 / KA431A / KA431L — Programmable Shunt Regulator July 2013 KA431 / KA431A / KA431L Programmable Shunt Regulator Features • Programmable Outpu.

KA431A - Programmable Shunt Regulator (Fairchild)
KA431 / KA431A / KA431L — Programmable Shunt Regulator July 2013 KA431 / KA431A / KA431L Programmable Shunt Regulator Features • Programmable Outpu.

KA431A - Programmable Shunt Regulator (ON Semiconductor)
Programmable Shunt Regulator KA431A, KA431L Description The KA431A and KA431L are three−terminal adjustable regulators with a guaranteed thermal stabi.

KA431L - Programmable Shunt Regulator (Fairchild)
KA431 / KA431A / KA431L — Programmable Shunt Regulator July 2013 KA431 / KA431A / KA431L Programmable Shunt Regulator Features • Programmable Outpu.

KA431S - Programmable Shunt Regulator (Fairchild)
KA431S / KA431SA / KA431SL — Programmable Shunt Regulator July 2013 KA431S / KA431SA / KA431SL Programmable Shunt Regulator Features • Programmable.

KA431S - Programmable Shunt Regulator (ON Semiconductor)
DATA SHEET .onsemi. Programmable Shunt Regulator KA431S, KA431SA, KA431SL Description The KA431S / KA431SA / KA431SL are three−terminal adjusta.

TAGS

KA431L Programmable Shunt Regulator ON Semiconductor

Image Gallery

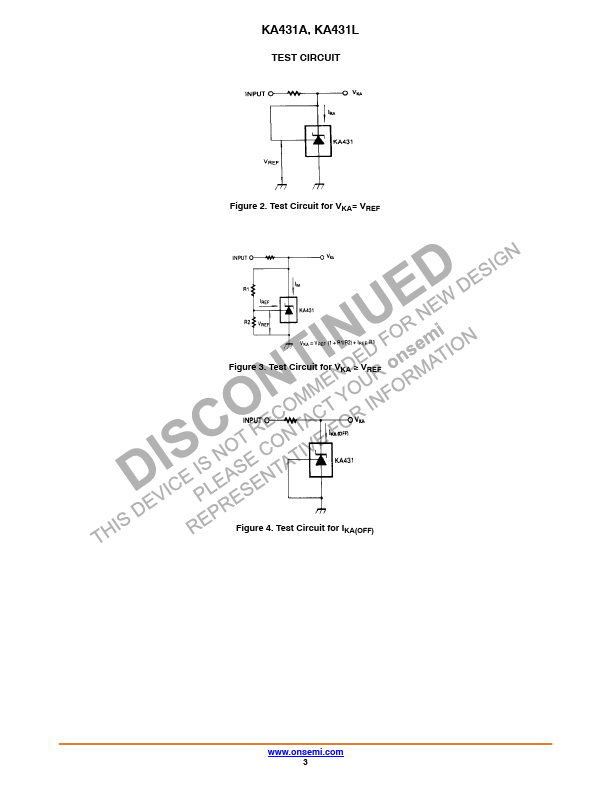

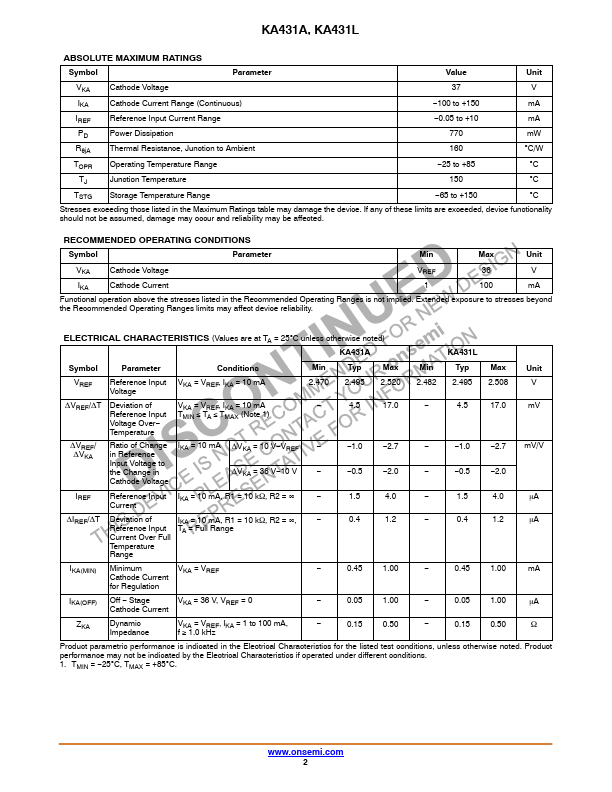

KA431L Datasheet Preview Page 2 KA431L Datasheet Preview Page 3
