LE24162LBXA - Two Wire Serial Interface EEPROM

Datasheet Summary

Description

C C BA 0.80mm × 1.20mm × 0.33mm PIN.A1 PIN.A2 PIN.B1 PIN.B2 PIN.C1 PIN.C2 VDD VSS WP VSS SCL SDA Block Diagram Power supply Ground Write protect pin Ground Serial clock input Serial data input/output Write controller High voltage generator WP Input Buffer SCL EEPROM Array X decoder Ad

Features

  • effect. Finally, the EEPROM internal write operation corresp.

📥 Download Datasheet

Datasheet preview – LE24162LBXA

Datasheet Details

Part number LE24162LBXA
Manufacturer ON Semiconductor
File Size 227.05 KB
Description Two Wire Serial Interface EEPROM
Datasheet download datasheet LE24162LBXA Datasheet
Additional preview pages of the LE24162LBXA datasheet.

📁 Similar Datasheet

  • LE24162LBXA - Two Wire Serial Interface EEPROM (Sanyo)
  • LE2416RLBXA - Two Wire Serial Interface EEPROM (Sanyo)
  • LE24C0221M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C023M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C042M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C043 - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C082M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C162M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C322M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24CB1283 - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

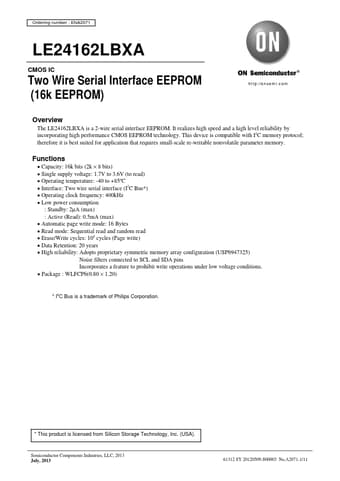

Ordering number : ENA2071 LE24162LBXA CMOS IC Two Wire Serial Interface EEPROM (16k EEPROM) http://onsemi.com Overview The LE24162LBXA is a 2-wire serial interface EEPROM. It realizes high speed and a high level reliability by incorporating high performance CMOS EEPROM technology. This device is compatible with I2C memory protocol; therefore it is best suited for application that requires small-scale re-writable nonvolatile parameter memory. Functions • Capacity: 16k bits (2k × 8 bits) • Single supply voltage: 1.7V to 3.6V (to read) • Operating temperature: -40 to +85ºC • Interface: Two wire serial interface (I2C Bus*) • Operating clock frequency: 400kHz • Low power consumption : Standby: 2μA (max) : Active (Read): 0.
