LE2416DXA EEPROM

A1 SCL A2 WP A3 VCC B1 SDA B2 GND B3 TEST Serial clock input Write protect Power supply Serial data in/output Ground Slave Device Address 2 Block Diagram TEST WP SCL Write controller High voltage generator EEPROM Array Serial controller X decoder SDA Serial-Parallel converter www.onsemi.co.

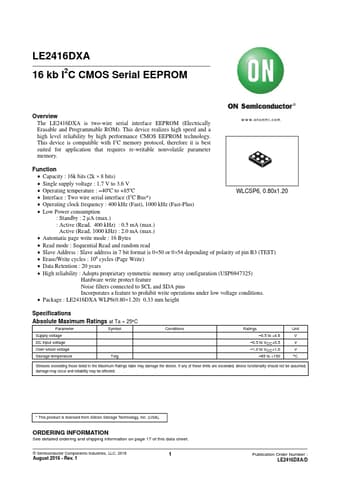

LE2416DXA 16 kb I2C CMOS Serial EEPROM Overview The LE2416DXA is two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). This device realizes high speed and a high level reliability by high performance CMOS EEPROM technology. This device is compatible with I2C memory protocol, therefore it is best suited for application that requires re-writable nonvolatile parameter memory. www.onsemi.com Function  Capacity : 16k bits (2k  8 bits) Single supply voltage :.
