LE24163LBXA - 16kb I2C CMOS Serial EEPROM

Product Overview

📥 Download Datasheet

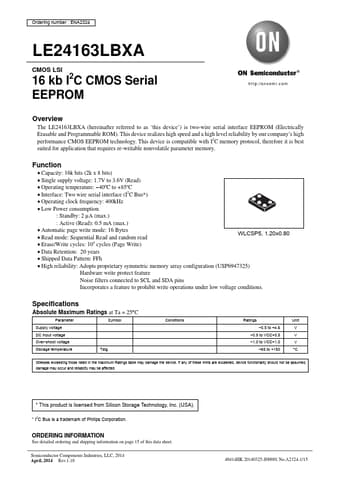

Datasheet preview – LE24163LBXA

Datasheet Details

Part number LE24163LBXA
Manufacturer ON Semiconductor
File Size 156.82 KB
Description 16kb I2C CMOS Serial EEPROM
Datasheet download datasheet LE24163LBXA Datasheet
Additional preview pages of the LE24163LBXA datasheet.

Product details

Description

A1 WP Write protect A2 VDD Power supply B1 SCL Serial clock input B2 - - C1 SDA Serial data in/output C2 VSS Ground Ball side View VSS VDD 2 SDA SCL WP 1 C BA No.A2324-4/15 Block Diagram WP SCL SDA I/O Buffer Input Buffer Condition detector LE24163LBXA Serial controller Address generator X decoder Write controller High voltage generator EEPROM Array Y decoder & Sense AMP Serial-Parallel converter No.A2324-5/15 Bus timing SCL SDA/IN SDA/OUT LE24163LBXA tF tHI
