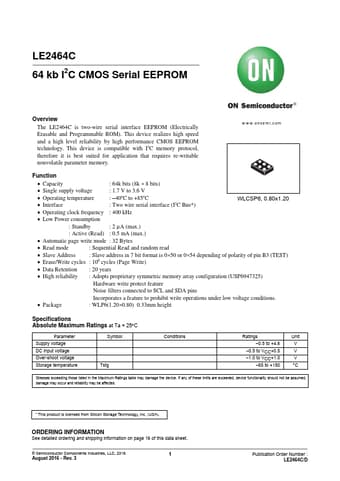

LE2464C 64 kb I2C CMOS Serial EEPROM
Overview
The LE2464C is two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). This device realizes high speed and a high level reliability by high performance CMOS EEPROM technology. This device is compatible with I2C memory protocol, therefore it is best suited for application that requires re-writable nonvolatile parameter memory.
www.onsemi.com
Function
Capacity
: 64k bits (8k 8 bits)
Single supply voltage Operating temperature Interface
: 1.7 V to 3.6 V
: 40ºC to +85ºC : Two wire serial interface (I2C Bus*)
WLCSP6, 0.80x1.20
Operating clock frequency : 400 kHz
Low Power consumption
: Standby
: 2 µA (max.)
: Active (Read) : 0.5 mA (max.
