PIN.A1 PIN.A2 PIN.B1 PIN.B2 PIN.C1 PIN.C2 VDD VDD2 WP VSS SCL SDA Power supply Power supply for WP pin Pull-up Write protect Ground Serial clock input Serial data input/output Block Diagram VDD2 WP SCL SDA Write controller igh voltage generator EEPROM Array Serial controller X decoder Y de

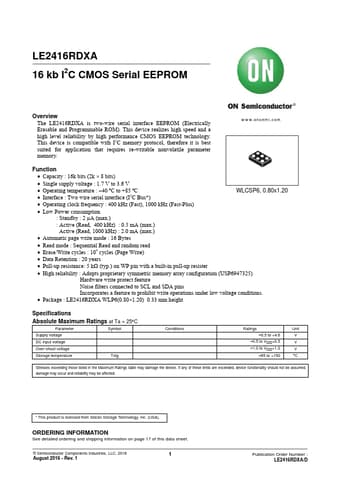

LE2416RDXA 16 kb I2C CMOS Serial EEPROM Overview The LE2416RDXA is two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM).

This device realizes high speed and a high level reliability by high performance CMOS EEPROM technology.

This device is compatible with I2C memory protocol, therefore it is best suited for application that requires re-writable nonvolatile parameter memory.

www.onsemi.com Function  Capacity : 16k bits (2k  8 bits) Single supply voltage
