MC100E150

6-BIT D LATCH

MC100E150 Features

* http://onsemi.com

* 800 ps Max. Propagation Delay

* PECL Mode Operating Range: VCC = 4.2 V to 5.7 V

* with VEE = 0 V NECL Mode Operating Range: VCC = 0 V with VEE =

* 4.2 V to

* 5.7 V Internal Input 50 kW Pulldown Resist

MC100E150 General Description

The MC10E/100E150 contains six D-type latches with differential outputs. When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent and input data transitions propagate through to the output. A logic HIGH on either LEN1 or LEN2 (or both) latches the data. The Master Reset (MR) overrides.

MC100E150 Datasheet (105.41 KB)

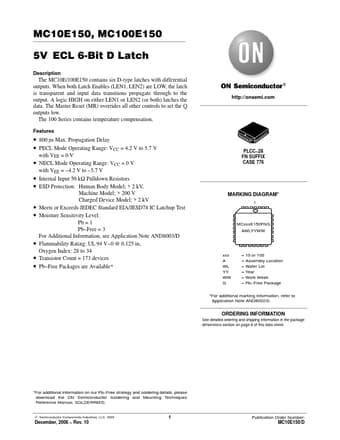

Preview of MC100E150 PDF

Datasheet Details

Part number:

MC100E150

Manufacturer:

ON Semiconductor ↗

File Size:

105.41 KB

Description:

6-bit d latch.
