MC100E156

3-BIT 4:1 MUX-LATCH

MC100E156 Features

* http://onsemi.com

* 950 ps Max. D to Output 850 ps Max. LEN to Output Differential Outputs Asynchronous Master Reset Dual Latch-Enables PECL Mode Operating Ra

MC100E156 General Description

The MC10E/100E156 contains three 4:1 multiplexers followed by transparent latches with differential outputs. When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent, and output date is controlled by the multiplexer select controls (SEL0, SEL1). A logic HIGH on either LEN1 or LEN2 (or.

MC100E156 Datasheet (152.75 KB)

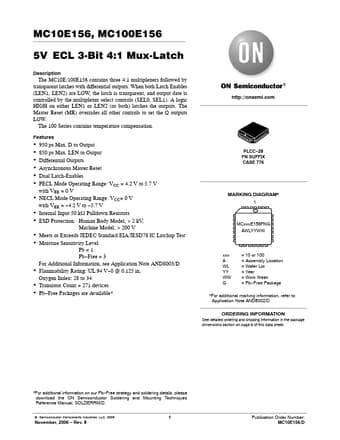

Preview of MC100E156 PDF

Datasheet Details

Part number:

MC100E156

Manufacturer:

ON Semiconductor ↗

File Size:

152.75 KB

Description:

3-bit 4:1 mux-latch.
