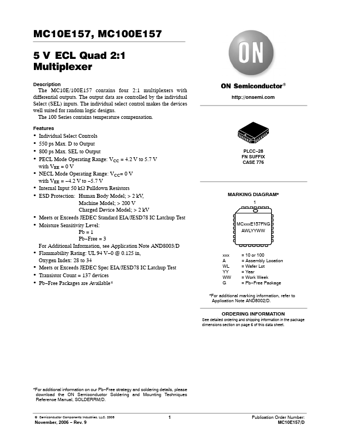

The MC10E/100E157 contains four 2:1 multiplexers with differential outputs.

Features

http://onsemi. com.
Individual Select Controls 550 ps Max. D to Output 800 ps Max. SEL to Output PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V NECL Mode Operating Range: VCC= 0 V with VEE =.
4.2 V to.
5.7 V Internal Input 50 kW Pulldown Resistors ESD Protection: Human Body Model; > 2 kV, Machine Model; > 200 V Charged Device Model; >.
