MC74LVXT4052 Analog Multiplexer/Demultiplexer

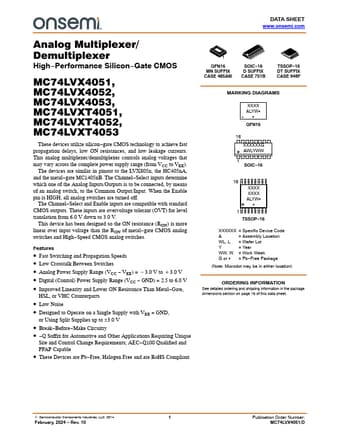

DATA SHEET www.onsemi.com Analog Multiplexer/ Demultiplexer High Performance Silicon Gate CMOS MC74LVX4051, MC74LVX4052, MC74LVX4053, MC74LVXT4051, MC74LVXT4052, MC74LVXT4053 These devices utilize silicon gate CMOS technology to achieve fast propagation delays, low ON resistances, and low leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range (from VCC to VEE). The devices are similar in pinou.

MC74LVXT4052 Features

* Fast Switching and Propagation Speeds

* Low Crosstalk Between Switches

* Analog Power Supply Range (VCC

* VEE) =

* 3.0 V to )3.0 V

* Digital (Control) Power Supply Range (VCC

* GND) = 2.5 to 6.0 V

* Improved Linearity and Lower ON Resistan
