MC74LVXT4053, MC74LVX4051 - Analog Multiplexer/Demultiplexer

ON Semiconductor

📥 Download Datasheet

MC74LVXT4053 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC74LVXT4053, MC74LVX4051. Please refer to the document for exact specifications by model.

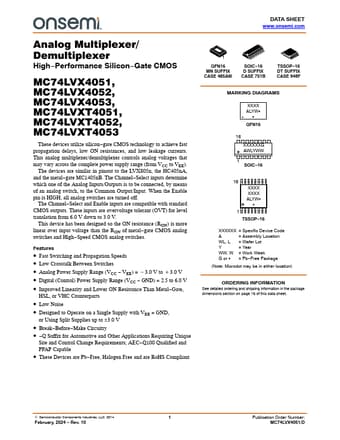

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC74LVXT4053, MC74LVX4051
Manufacturer	ON Semiconductor ↗
File Size	467.92 KB
Description	Analog Multiplexer/Demultiplexer
Datasheet	MC74LVX4051-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC74LVXT4053, MC74LVX4051. Please refer to the document for exact specifications by model.

MC74LVXT4053 Product details

Features

Fast Switching and Propagation Speeds.
Low Crosstalk Between Switches.
Analog Power Supply Range (VCC.
VEE) =.
3.0 V to )3.0 V.
Digital (Control) Power Supply Range (VCC.
GND) = 2.5 to 6.0 V.
Improved Linearity and Lower ON Resistance Than Metal.
Gate, HSL, or VHC Counterparts.
Low Noise.
Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to ±3.0 V.
Break.
B.
