MC74LVXT8053, Analog Multiplexer/Demultiplexer

MC74LVXT8053 Analog Multiplexer/ Demultiplexer High *Performance Silicon *Gate CMOS The MC74LVXT8053 utilizes silicon *gate CMOS.

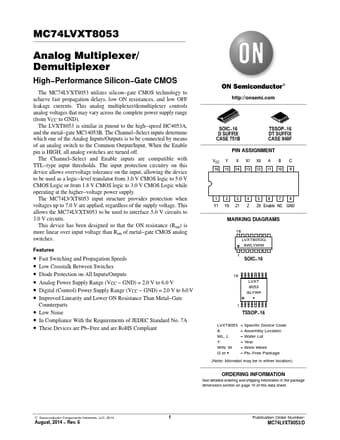

datasheet Preview Page 1 from Datasheet4u.com

MC74LVXT8053_ONSemiconductor.pdf

MC74LVXT8053 Datasheet Preview — Preview of MC74LVXT8053 PDF

Datasheet Details

Part number:

MC74LVXT8053

Manufacturer:

ON Semiconductor ↗

File Size:

275.71 KB

Description:

Analog Multiplexer/Demultiplexer

Features

* Fast Switching and Propagation Speeds
* Low Crosstalk Between Switches
* Diode Protection on All Inputs/Outputs
* Analog Power Supply Range (VCC
* GND) = 2.0 V to 6.0 V
* Digital (Control) Power Supply Range (VCC
* GND) = 2.0 V to 6.0 V

Applications

* of any voltage higher than maximum rated voltages to this high
* impedance circuit. For proper operation, Vin and Vout should be constrained to the range GND v (Vin or Vout) v VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs
