MC74VHC04 - Hex Inverter

ON Semiconductor

📥 Download Datasheet

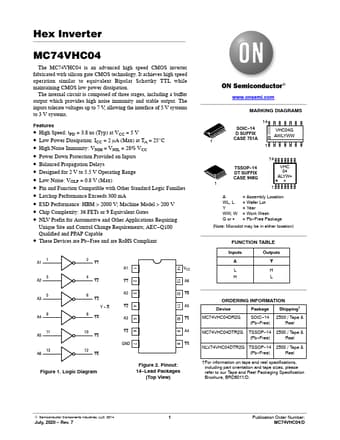

MC74VHC04 Datasheet Preview — Preview of MC74VHC04 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC74VHC04
Manufacturer	ON Semiconductor ↗
File Size	273.60 KB
Description	Hex Inverter
Datasheet	MC74VHC04_ONSemiconductor.pdf

MC74VHC04 Product details

Features

High Speed: tPD = 3.8 ns (Typ) at VCC = 5 V.
Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2 V to 5.5 V Operating Range.
Low Noise: VOLP = 0.8 V (Max).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Performance Exceeds 300 mA.
ESD Performance: HBM.
