MC74VHC08 - Quad 2-Input AND Gate

ON Semiconductor

📥 Download Datasheet

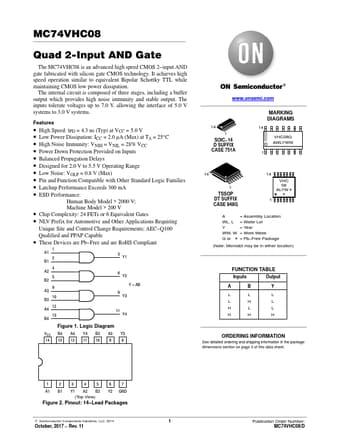

MC74VHC08 Datasheet Preview — Preview of MC74VHC08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC74VHC08
Manufacturer	ON Semiconductor ↗
File Size	229.17 KB
Description	Quad 2-Input AND Gate
Datasheet	MC74VHC08_ONSemiconductor.pdf

MC74VHC08 Product details

Features

High Speed: tPD = 4.3 ns (Typ) at VCC = 5.0 V.
Low Power Dissipation: ICC = 2.0 mA (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2.0 V to 5.5 V Operating Range.
Low Noise: VOLP = 0.8 V (Max).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Performance Exceeds 300 mA.
ESD Performance.
