NB2760A

Reduced EMI Clock Synthesizer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB2760ASNR2 IC CLK/FREQ SYNTH 6TSOP DigiKey 0 0
$0

NB2760A Datasheet (142.29 KB)

Preview of NB2760A PDF

Datasheet Details

Part number:

NB2760A

Manufacturer:

ON Semiconductor ↗

File Size:

142.29 KB

Description:

Reduced emi clock synthesizer.

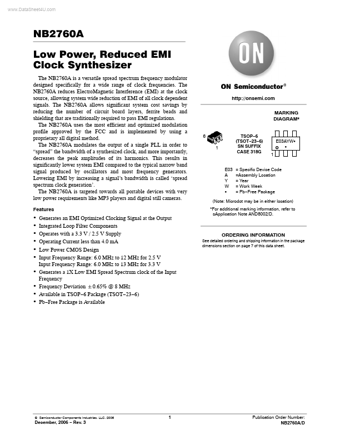

www.DataSheet4U.com NB2760A Low Power, Reduced EMI Clock Synthesizer The NB2760A is a versatile spread spectrum frequency modulator designed specific.

NB2760A Features

* http://onsemi.com MARKING DIAGRAM

* 6 1 TSOP

* 6 (TSOT

* 23

* 6) SN SUFFIX CASE 318G E03AYWG G 1 E03 A Y W G = Specific Device Code =Assembly Location = Year = Work Week = Pb

* Free Package (Note: Microdot may be in either location)

* For additional marking informat

NB2760A General Description

Supply Voltages Frequency Range Cycle

*to

*Cycle Jitter Output Duty Cycle Modulation Rate Equation Frequency Deviation For 2.5 V Supply For 3.3 V Supply VSS Specification VDD = 3.3 V / 2.5 V 6.0 MHz < CLKIN < 12 MHz 6.0 MHz < CLKIN < 13 MHz 200 ps (maximum) 45/55% (worst case) FIN/25.
