NB2762A

Reduced EMI Clock Synthesizer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB2762ASNR2G IC CLK/FREQ SYNTH 6TSOP DigiKey 0 2500 units
$1.19

NB2762A Datasheet (139.14 KB)

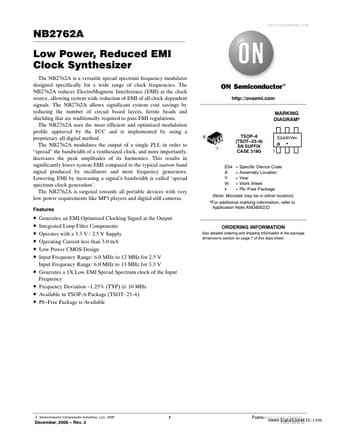

Preview of NB2762A PDF

Datasheet Details

Part number:

NB2762A

Manufacturer:

ON Semiconductor ↗

File Size:

139.14 KB

Description:

Reduced emi clock synthesizer.
www.DataSheet4U.com NB2762A Low Power, Reduced EMI Clock Synthesizer The NB2762A is a versatile spread spectrum frequency modulator designed specific.

NB2762A Features

* http://onsemi.com MARKING DIAGRAM

* TSOP-6 (TSOT-23-6) SN SUFFIX CASE 318G 6 1 E04AYWG G 1 E04 A Y W G = Specific Device Code = Assembly Location = Year = Work Week = Pb-Free Package (Note: Microdot may be in either location)

* For additional marking information, refer to Application Note

NB2762A General Description

Supply Voltages Frequency Range Cycle-to-Cycle Jitter Output Duty Cycle Modulation Rate Equation Frequency Deviation For 2.5 V Supply For 3.3 V Supply VSS Specification VDD = 3.3 V / 2.5 V 6 MHz < CLKIN < 12 MHz 6 MHz < CLKIN < 13 MHz 200 ps (maximum) 45/55% (worst case) FIN/256 -1.25% (TYP) @ 10 .
