NCP2811 Datasheet, Amplifier, ON Semiconductor

NCP2811 Features

  • Amplifier
  • True Ground Configuration Output Eliminates DC
  • Blocking Capacitors:
  • Save Board Area
  • Save Component Cost
  • No Low
  • Frequency Response

PDF File Details

Part number:

NCP2811

Manufacturer:

ON Semiconductor ↗

File Size:

184.50kb

Download:

📄 Datasheet

Description:

Nocap advanced stereo headphone amplifier. PIN CSP PIN TQFN PIN TSSOP PIN NAME TYPE A1 7 10 AGND GROUND A2 5 7 SD INPUT A3 10 13 OUTR OUTPUT A4 11 14 OUTL OU

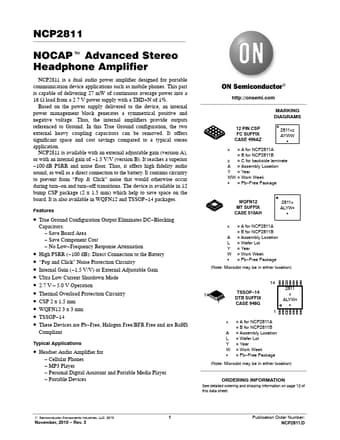

Datasheet Preview: NCP2811 📥 Download PDF (184.50kb)
Page 2 of NCP2811 Page 3 of NCP2811

NCP2811 Application

  • Applications such as mobile phones. This part is capable of delivering 27 mW of continuous average power into a 16 Ω load from a 2.7 V power supply
