NCP2823 High Efficiency 3W Filterless Class-D Audio Amplifier

NCP2823 Series High Efficiency 3W Filterless Class D Audio Amplifier The NCP2823A/B are cost effective mono audio power amplifiers designed for portable electronic devices. NCP2823A is optimized for 8 W operation and NCP2823B can operate with speaker impedance down to 4.0 W. For Instance, NCP2823B is capable of delivering 3 W of continuous average power to a 4.0 W from a 5.0 V supply in a Bridge Tied Load (BTL) configuration. Under the same conditions, NCP2823A can provide 1.5 W to an 8.0 W BTL.

NCP2823_ONSemiconductor.pdf

Preview of NCP2823 PDF

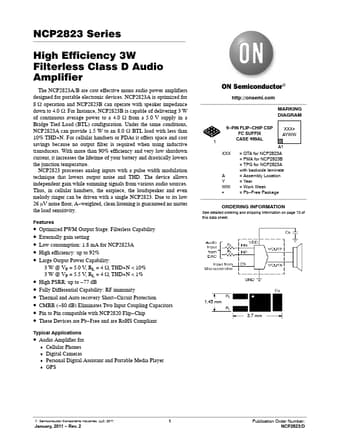

NCP2823 Datasheet Preview Page 2 NCP2823 Datasheet Preview Page 3

Datasheet Details

Part number:

NCP2823

Manufacturer:

ON Semiconductor ↗

File Size:

140.48 KB

Description:

High efficiency 3w filterless class-d audio amplifier.
