NCP2824 Datasheet, Amplifier, ON Semiconductor

NCP2824 Features

  • Amplifier
  • Non Clipping Function with Automatic Gain Control Circuitry
  • Programmable Power Limit Function
  • Single Wire Interface. No Need for Additional Components

PDF File Details

Part number:

NCP2824

Manufacturer:

ON Semiconductor ↗

File Size:

303.92kb

Download:

📄 Datasheet

Description:

Non-clip and power limit mono class-d amplifier. The NCP2824 is a Filterless Class D amplifier capable of delivering up to 2.4 W to a 4 W load with a 5 V supply voltage. With the sam

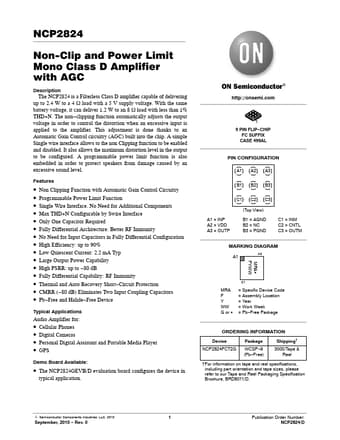

Datasheet Preview: NCP2824 📥 Download PDF (303.92kb)
Page 2 of NCP2824 Page 3 of NCP2824

NCP2824 Application

  • Applications Audio Amplifier for:
  • Cellular Phones
  • Digital Cameras
  • Personal Digital Assistant and Portable Media Player

TAGS

NCP2824
Non-Clip
and
Power
Limit
Mono
Class-D
Amplifier
ON Semiconductor
