NCP2817

LongPlay Headphone Amplifier

ON Semiconductor

NCP2817 Features

* NOCAP Output Eliminates DC

* Blocking Capacitors:

* Saves Board Area

* Saves Component Cost

* No Low

* Frequency Response Attenuation

* LongPlay Architecture: Increase the Battery Life

* High PSRR (

* 100 dB): Direct Connection to t

NCP2817 General Description

Pin Pin Name A1 CPM Type Input / Output Description Charge pump flying capacitor negative terminal. A 1 mF ceramic capacitor to CPP is required A2 PVM Output Charge pump output. A 1 mF ceramic capacitor to ground is needed A3 INL Input Left input of the audio source A4 INR Input Right inp.

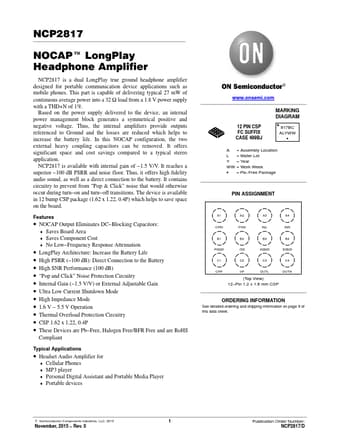

NCP2817 Datasheet (93.41 KB)

NCP2817 Datasheet Preview — Preview of NCP2817 PDF

Datasheet Details

Part number:

NCP2817

Manufacturer:

ON Semiconductor ↗

File Size:

93.41 KB

Description:

Longplay headphone amplifier.
NCP2817 NOCAP] LongPlay Headphone Amplifier NCP2817 is a dual LongPlay true ground headphone amplifier designed for portable communication device app.
