NCP2815

LongPlay Headphone Amplifier

ON Semiconductor

NCP2815 Features

* NOCAP Output Eliminates DC

* Blocking Capacitors:

* Saves Board Area

* Saves Component Cost

* No Low

* Frequency Response Attenuation

* LongPlay Architecture: Increase the Battery Life

* High PSRR (

* 100 dB): Direct Connection to t

NCP2815 General Description

Pin Pin Name Type Description A1 CPM Input / Output Charge pump flying capacitor negative terminal. A 1 mF ceramic filtering capacitor to CPP is required A2 PVM A3 INL Output Input Charge pump output. A 1 mF ceramic filtering capacitor to ground is required Left input of the audio source A.

NCP2815 Datasheet (225.35 KB)

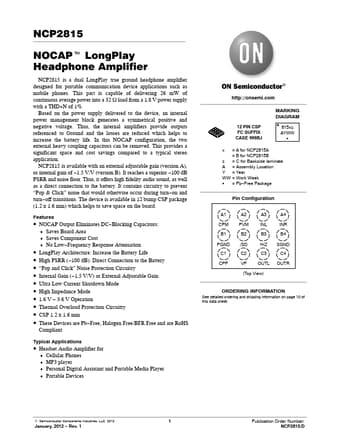

NCP2815 Datasheet Preview — Preview of NCP2815 PDF

Datasheet Details

Part number:

NCP2815

Manufacturer:

ON Semiconductor ↗

File Size:

225.35 KB

Description:

Longplay headphone amplifier.
NCP2815 NOCAPt LongPlay Headphone Amplifier NCP2815 is a dual LongPlay true ground headphone amplifier designed for portable communication device app.
