NCP2820

2.65W Filterless Class-D Audio Power Amplifier

ON Semiconductor

NCP2820 Features

* Optimized PWM Output Stage: Filterless Capability

* Efficiency up to 90% Low 2.5 mA Typical Quiescent Current

* Large Output Power Capability: 1.4 W with 8.0 W Load (CSP) and THD + N < 1%

* Ultra Fast Start

* up Time: 1 ms for NCP2820A Version

* High P

NCP2820 General Description

Pin No. CSP UDFN8 Symbol A1 3 INP A2 7 GND A3 8 OUTM B1 2 B2 6 B3 7 Vp Vp GND C1 4 INM C2 1 SD C3 5 OUTP 300 kW SD Shutdown Control Vih Vil Figure 1. Typical Application GND Type I I O I I I I I O Positive Differential Input. Description Analog Ground. Negative BT.

NCP2820 Datasheet (706.97 KB)

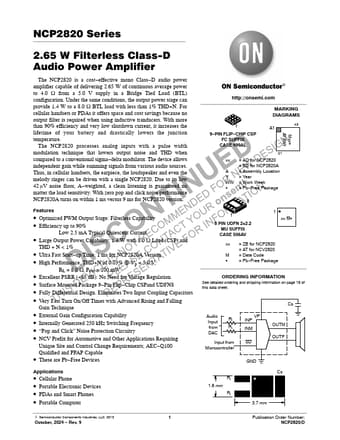

NCP2820 Datasheet Preview — Preview of NCP2820 PDF

Datasheet Details

Part number:

NCP2820

Manufacturer:

ON Semiconductor ↗

File Size:

706.97 KB

Description:

2.65w filterless class-d audio power amplifier.
NCP2820 Series 2.65 W Filterless Class-D Audio Power Amplifier The NCP2820 is a cost

*effective mono Class

*D audio power amplifier cap.
