NCP5208 DDR-I/II Termination Regulator

Pin 1 2 3 4 5 6 7 8 Symbol POK GND VFB SD VDDQ AVIN PVIN VTT Open *drain VTT Power OK output Ground Remote sensing Feedback pin for regulating VTT Active low shutdown pin to tri *state VTT output, this pin is pulled high internally Reference input for VTT regulator Analog supply input,.

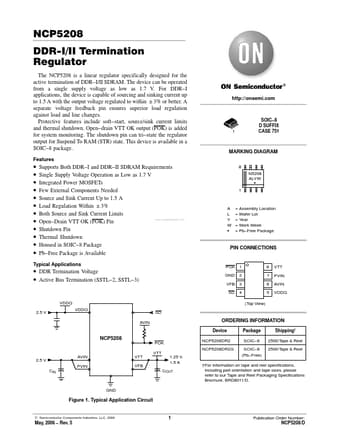

NCP5208 DDR I/II Termination Regulator The NCP5208 is a linear regulator specifically designed for the active termination of DDR I/II SDRAM. The device can be operated from a single supply voltage as low as 1.7 V. For DDR I applications, the device is capable of sourcing and sinking current up to 1.5 A with the output voltage regulated to within "3% or better. A separate voltage feedback pin ensures superior load regulation against load and line changes. Protective featur.

NCP5208 Features

* include soft

* start, source/sink current limits and thermal shutdown. Open

* drain VTT OK output (POK) is added for system monitoring. The shutdown pin can tri

* state the regulator output for Suspend To RAM (STR) state. This device is available in a SOIC

* 8 package. Featur
