NCP5210 - PWM Dual Buck and Linear DDR Power Controller

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCP5210
Manufacturer	ON Semiconductor
File Size	238.11 KB
Description	PWM Dual Buck and Linear DDR Power Controller
Datasheet	NCP5210 Datasheet

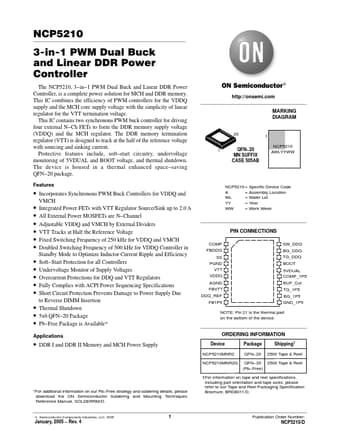

Additional preview pages of the NCP5210 datasheet.

Product details

Description

Pin Symbol 1 COMP 2 FBDDQ 3 SS 4 PGND 5 VTT 6 VDDQ 7 AGND 8 FBVTT 9 DDQ_REF 10 FB1P5 11 GND_1P5 12 BG_1P5 13 TG_1P5 14 BUF_Cut 15 COMP_1P5 16 5VDUAL 17 BOOT 18 TG_DDQ 19 BG_DDQ 20 SW_DDQ 21 TH_PAD Description VDDQ error amplifier compensation node.DDQ regulator feedback pin.Soft start pin of DDQ and MCH.

Features

include, soft.
start circuitry, undervoltage monitoring of 5VDUAL and BOOT voltage, and thermal shutdown. The device is housed in a thermal enhanced space.
saving QFN.
20 package. Features.
Incorporates Synchronous PWM Buck Controllers for VDDQ and VMCH.
Integrated Power FETs with VTT Regulator Source/Sink up to 2.0 A.
All External Power MOSFETs are N.
Channel.
Adjustable VDDQ and VMCH by External Dividers.
VTT Tracks at Ha.
