NCP5214 - Notebook DDR Power Controller

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCP5214
Manufacturer	ON Semiconductor
File Size	363.19 KB
Description	Notebook DDR Power Controller
Datasheet	NCP5214 Datasheet

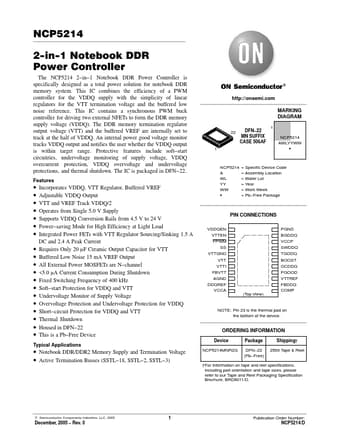

Additional preview pages of the NCP5214 datasheet.

Product details

Description

Pin Symbol Description 1 VDDQEN VDDQ regulator enable input.High to enable.2 VTTEN VTT regulator enable input.High to enable.3 FPWM Forced PWM enable input.Low to enable forced PWM mode and disable power saving mode. start capacitor connection to ground.

Features

include soft.
start circuitries, undervoltage monitoring of supply voltage, VDDQ overcurrent protection, VDDQ overvoltage and undervoltage protections, and thermal shutdown. The IC is packaged in DFN.
22. Features.
Incorporates VDDQ, VTT Regulator, Buffered VREF.
Adjustable VDDQ Output.
VTT and VREF Track VDDQ/2.
Operates from Single 5.0 V Supply.
Supports VDDQ Conversion Rails from 4.5 V to 24 V.
Power.
saving Mode for H.
