NCP5602 High Efficiency Ultra Small Thinnest White LED Driver

Pin No. Symbol Function Description 1 GND POWER This pin is the GROUND signal for the analog and digital blocks and must be connected to the system ground. This pin is the GROUND reference for the DC *DC converter and the output current control. The pin must be connected to the system .

NCP5602 Features

* 2.7 to 5.5 V Input Voltage Range

* 87% Peak Efficiency with 1x and 1.5x Mode

* ICON Function Implemented

* Built

* in Short Circuit Protection

* Provides Two Independent LED Drives

* Support I2C Protocol

* Smallest Available Package on

NCP5602_ONSemiconductor.pdf

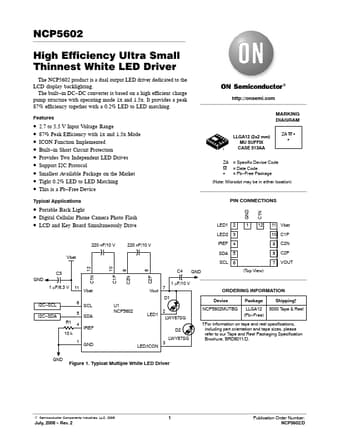

Preview of NCP5602 PDF
