NCP5612 - High Efficiency Ultra Small Thinnest White LED Driver

NCP5612 Description

NCP5612 High Efficiency Ultra Small Thinnest White LED Driver The NCP5612 product is a dual output LED driver dedicated to the LCD display backlighti.
Pin No.

NCP5612 Features

* Support the Single Wire Serial Link Protocol
* Peak Efficiency 90% with 1x and 1.5x Mode
* Programmable Dimming ICON Function
* Built
* in Short Circuit Protection
* Provides 16 steps Current Control
* Controlled Start
* up Inrush Current

NCP5612 Applications

* Portable Back Light
* Digital Cellular Phone Camera Photo Flash
* LCD and Key Board Simultaneous Drive VCC Vbat C5 C3 220 nF/10 V 220 nF/10 V 1 mF/6.3 V 1 mF/6.3 V GND VCC
* cpu I/O pin MCU GND R1 10k GND C1 1 mF/10 V C2 12 10 9 8 C1N C1P C2N C2P C4 GND

📥 Download Datasheet

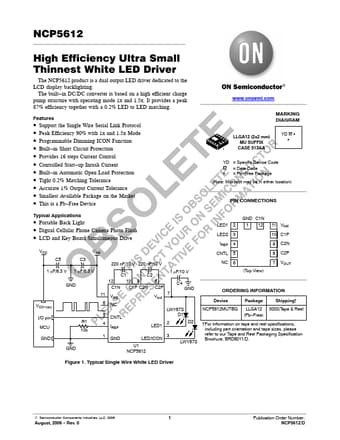

Preview of NCP5612 PDF
datasheet Preview Page 2 datasheet Preview Page 3
