NCP5604A, High Efficiency White LED Driver
Pin 1 2 Symbol VBAT EN Type INPUT, POWER INPUT, DIGITAL Description Input Battery voltage to supply the analog and digital blocks.
The pin must be decoupled to ground by a 1.0 mF ceramic capacitor.
This pin carries the Enable function to control the DC *DC converter.
It can be used to digital

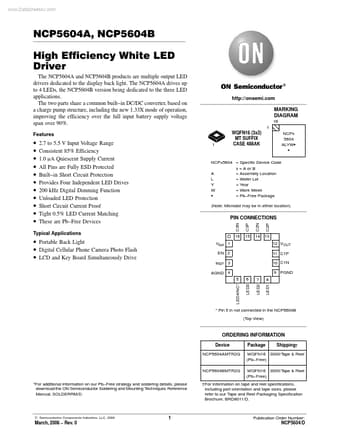

www.DataSheet4U.com NCP5604A, NCP5604B High Efficiency White LED Driver The NCP5604A and NCP5604B products are multiple output LED drivers dedicated to the display back light.
The NCP5604A drives up to 4 LEDs, the NCP5604B version being dedicated to the three LED applications.
The two parts share a common built in DC/DC converter, based on a charge pump structure, including the new 1.33X mode of operation, improving the efficiency over the full input battery supply voltage span over 90%
NCP5604A Features
* http://onsemi.com C3N C2N C3P Typical Applications
* Portable Back Light
* Digital Cellular Phone Camera Photo Flash
* LCD and Key Board Simultaneously Drive 16 Vbat 1 EN 2 IREF 3 AGND 4 5 LED4/NC
* 15 14 13 12 VOUT 11 C1P 10 C1N 9 PGND 6 LED3 7 LED2
* Pin 5
