NCV21671

Current-Shunt Monitors

NCV21671 Features

* Wide Common Mode Input Range:

* 0.1 V to 40 V

* Supply Voltage Range: 1.8 V to 5.5 V

* Low Offset Voltage: ±25 mV max

* Rail

* to

* Rail Output Capability

* Low Current Consumption: 80 mA max

* Enable Pin to Turn Off Input and Powe

NCV21671 General Description

NC 1 CIN+ 2 IN+ 3 IN

* 4 CIN

* 5 Micro

*10 10 OUT 9 GND 8 REF 7 EN 6 VS REF 1 GND 2 VS 3 Figure 2. Pin Function Description 6 OUT 5 IN

* 4 IN+ SC70

*6 PIN DESCRIPTION Pin Name Type NC No connect CIN+ Input IN+ Input IN

* Input CIN

* .

NCV21671 Datasheet (706.07 KB)

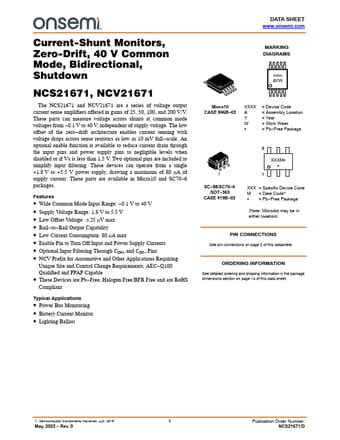

Preview of NCV21671 PDF

Datasheet Details

Part number:

NCV21671

Manufacturer:

ON Semiconductor ↗

File Size:

706.07 KB

Description:

Current-shunt monitors.
Current-Shunt Monitors, Zero-Drift, 40 V Common Mode, Bidirectional, Shutdown NCS21671, NCV21671 The NCS21671 and NCV21671 are a series of voltage out.
