NCV21673 - Current-Shunt Monitors

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCV21673
Manufacturer	ON Semiconductor
File Size	975.19 KB
Description	Current-Shunt Monitors
Datasheet	NCV21673 Datasheet

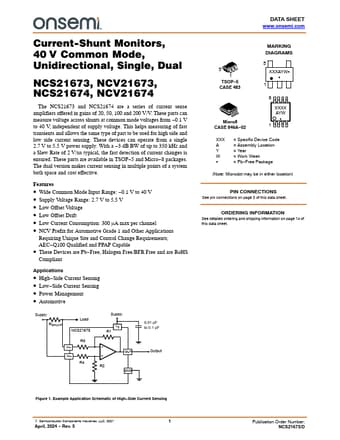

Additional preview pages of the NCV21673 datasheet.

Product details

Description

OUT 1 GND 2 IN+ 3 5 VS 4 IN Single Channel TSOP 5 OUT 1 1 IN 1 2 IN+ 1 3 GND 4 Figure 2. Pin Function Description Dual Channel Micro 8 8 VS 7 OUT 2 6 IN 2 5 IN+ 2 PIN DESCRIPTION Pin Name Type IN+ Input IN Input OUT Output VS Supply GND Supply Description This pin is connected to the positive side of the sense resistor or current shunt.This pin is connected to the negative side of the sense resistor or current shunt.The o

Features

Wide Common Mode Input Range:.
0.1 V to 40 V.
Supply Voltage Range: 2.7 V to 5.5 V.
Low Offset Voltage.
Low Offset Drift.
Low Current Consumption: 300 mA max per channel.
NCV Prefix for Automotive Grade 1 and Other.
