NCV210 - Current-Shunt Monitor

NCS210, NCV210, NCS211 Current-Shunt Monitor, Voltage Output, Bi-Directional Zero-Drift The NCS210, NCV210, and NCS211 are voltage output current shunt monitors that can measure voltage across shunts at common mode voltages from 0.3 V to 26 V, independent of supply voltage.

Two fixed gains are available: 200 V/V, or 500 V/V.

The low offset of the zero drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full scale.

The

NCV210 Features

* Wide Common

* Mode Input Range

* 0.3 V to 26 V

* Supply Voltage Range from 2.7 V to 26 V

* Low Offset Voltage ±60 mV Max

* Low Offset Drift (0.1 mV/°C)

* Low Gain Error (Max 1%)

* Rail

* to

* Rail Input and Output Capability

NCV210-ONSemiconductor.pdf

Preview of NCV210 PDF

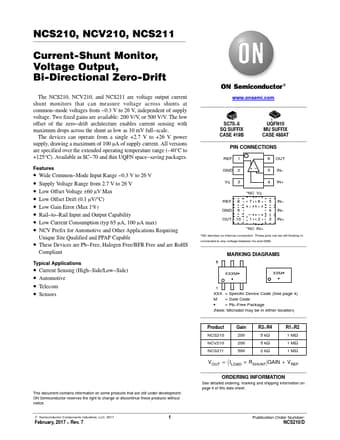

NCV210 Datasheet Preview Page 2 NCV210 Datasheet Preview Page 3
